:: PRODUCT CATEGORY > Gear boxs

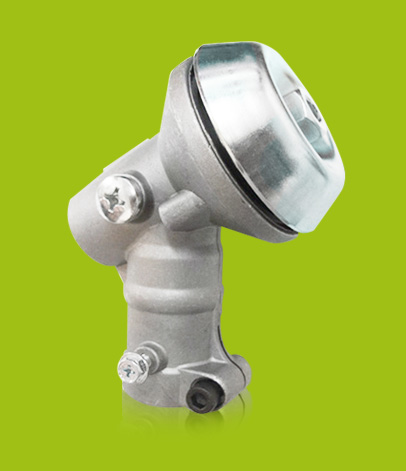

NAME: CA26 Trimmer gear head

Product Description:

CA26 + Trimmer gear head CA26 + 26mm + gear bearing aluminum + send silver


CA2607	PIP 26MM x 7 teeth INTER GROOVES	120mm/0.58kg	60	KAWASAKI KBL23A KBH27A KBL27A KBH34A KBL34A KBH43A KBL43A KBH48A KBL48A	22.5cc 26.3cc 26.3cc 33.3cc 33.3cc 43.2cc 43.2cc 48.6cc 48.6cc	26mm
CA2609	PIP 26MM x 9 teeth INTER GROOVES	120mm/0.58kg	60	KTR26AC KGT26AC KGT27A KBL27B KBH53A SANLI GT26 MAKITA 4350UH (4 stroke)	25.4cc 25.4cc 26.3cc 26.3cc 53.2cc 25.4cc 43cc	26mm
CA2610C	PIP 26MM x 10 teeth INTER GROOVES	120mm/0.58kg	60	McCulloach B40B B28PS KAAZ VS255(S) VS400(W) VSP250(S) VSP400G9(W) J4006X(W) HITACHI MT324EKSS	40cc 28cc 20.1-42.0 20.1-42.0 20.1-42.0 20.1-42.0 20.1-42.0 23.9cc	26mm
CA2653N	PIP 26MM x 5.3 mm SQUARE INTER GROOVES	120mm/0.58kg	60	MT340EFL MT324EKDSL CG40EK CJ28EJ HUSQVAMA 235R 143RII 327RX 323RII	39.8cc 23.9cc 39.8cc 28cc 40.2cc 41.5cc 24.5cc 24.5cc	26mm
CA2660N	PIP 26MM x 6.0 mm SQUARE INTER GROOVES	120mm/0.58kg	60	135R 555RXT 535RXT TANAKA TBC340 TBC340D TBC420PF TBC4200DX COBRA BC330C	34.6cc 53cc 34.6cc 32.2cc 32.2cc 39.8cc 39.8cc 33cc	26mm
CA2657FL	PIP 26MM x 5mm x 7mm long oval shape	120mm/0.58kg	60	BC450KB ZENOAH BKZ5010 BK2651 FARMERTEC MT52BG-445L LAWNFLITE PROVF500LV	45cc 50.6cc 25.4cc 52cc 45cc	26mm

Gear box is engine output and it turns power into turning
The main principal component gear bearing aluminum
It is silver color, only work with brush cutter or trimmer
It has up and lower blade holder , screws, anti-grass cover, and plastic protector.
We all do FOB / T/T and 20 pic in a box.
齒輪變速箱是藉由引擎使齒輪箱轉動
主要齒輪的材質是軸承鋁
機頭是銀色的，只能用於割草機或修剪機
機頭有上下刀座，螺絲，防草蓋和塑料保護裝置。
我們有作FOB / T / T一箱20顆。

Brush cutter gear box is a type of product that in line with the long transmission shaft and engine, and passing power to make turn and perform grass cutting action. In side of gear box it has 2 gear that biting to each other and that will make sure engine power has it good use. And with 4 bearing, 2 for each side make smooth turning. With good thick shell case it provide good durable structure. Whether use with a blade or a nylon rope, Gear box all can be effectively.
Our material all has going thought many process such as heat treatment to make sure it's stability and make sure good Aluminum shell touch with fine sand surface etc.. And with our clapper holder or we so call blade hold it also has good thickness.
Our material all has going thought many process such as heat treatment to make sure it's stability and make sure good Aluminum shell touch with fine sand surface etc.. And with our clapper holder or we so call blade hold it also has good thickness.
Accessories from up to lower blade holder, screws, anti-grass cover, and protection screw cap all work with your chose. And we all put 20 pic in one box and if you like packing differently please feel free to contact us.
our product has the warranty period, if not sabotage or improper operation, can be contacted by letter from the company, and borne Shipment returned to the company to do inspection, if detected as defective merchandise itself, the company provides a free replacement, the company in addition to the official website, but also provides Alibaba, eBay and other internet trading platform to facilitate your purchase basic products packaging 20 mowing head is a box, shipping method can according to your choice, you have any questions Jieke contact us.
割草機齒輪箱是一種符合長傳動軸和發動機，並通過動力轉動和執行割草動作的產品。在齒輪箱側面有兩個咬合的齒輪，這將確保發動機的動力具有良好的運作。並且有4個軸承，每側2個使平行運作。外殼厚，結構堅固耐用。無論是用刀片還是尼龍繩、齒輪箱都可以有效地使用。
我們的材料都經過多方面的加工，如熱處理來確保其穩定性，還有良好的鋁殼表面噴砂處理等。用我們的固定座或我們所謂的刀片，也都具有良好的厚度。
從上至下刀架，螺絲，防草蓋和保護螺帽的配件均可與您選擇的配合使用。我們都在一個盒子裡放了20張圖片，如果你喜歡包裝不同，請隨時與我們聯繫。
我們的產品有保修期，如果不是破壞或不當操作，可以通過公司的信函聯繫，並承擔運費退回給公司進行檢驗，如果發現有缺陷的商品本身，本公司提供免費更換，本公司除了官方網站外，還提供阿里巴巴，eBay等網絡交易平台，方便您購買基本產品包裝20頭割草機頭是一箱，運費方式可以根據您的選擇，有任何疑問請與我們聯繫。

Loosen the screw.
鬆開螺絲

Measure outside diameter of the tube, and notice the shaft's teeth number.
測量鋁管外徑並測量齒數

To conform with the tube's shaft, you have to notice the inter grooves.
為了符合管的軸，你必須注意到相互之間的溝槽

Measure the gearbox's bore diameter.
測量齒輪箱的孔徑

Rotate and push gearbox slightly.
輕微的旋轉並推動齒輪箱

Lock the screw.
鎖緊螺絲

1. Can I ask the products to get my company's logo and design?

A:	Yes, Tian Fu Machinery would do this for my client asked.

2. I have a new working head or gear box that I own and I can't find the one on Tian Fu Machinery's product list Would Tian Fu make the product what I need?

A:	Yeah, If the client offer a available sample and tell me the products detail of the items you are looking for. Tian Fu Machinery would make the product for my client expected. But the client have to mini order amount around USD5,000.

3. Is the sample for free?

A:	No you will have to pay for sample, one you make more than 20 units we will give back you sample payment.

4. How does Tian Fu Machinery offer the competitive and good products for my client?

We use all of materials come from Taiwan Steel corproation the runs by Taiwanese government so the material pass SGS certificate. We also prove it to my client if they needed. Therefore quality of material is quality and quantity assured that's why Tian Fu Machinery offer the competitive and good products.

5. What is minimum quality do I can order?

A:	Just one order we will send it out any way, but the shipping will pay by customer.

6. When does a client get goods?

A:	5,000pcs go around 30-40 working days after we get prepayment. simple order to 200pcs go around 7-10 working days after we get prepayment.

7. For cantact faster

A:	Because of time difference and if you want to contact with us faster. Please use We Chat App ( ID: pingc052 ) or alibaba trade manager. We will reply to you as soon as we see it.

8. Do you accept online payment?

A:	Yes, we also accept PayPal for small order.

1. 我可以要求產品以該公司的標誌和設計嗎？

A:	是的，添富機械會為客戶解決這個問題

2. 我有一個新的機頭或齒輪箱，我找不到添富機械產品清單上的任何一個型號，添富會生產我所需要的產品嗎？

A:	是的，如果客戶提供了一個可用的樣品並告訴我你要找的產品的細節。添富機械將為客戶提供產品。但是客戶必須在5000美元左右的最小訂購量。

3. 樣品是免費的嗎？

A:	不需要支付樣品費用，如果超過20個單位，我們將退還樣品費用。

4. 添富機械如何為客戶提供具有競爭力的優質產品？

A:	我們使用來自台灣鋼鐵公司的所有材料由台灣政府運作，所以材料通過SGS證書。如果他們需要，我們也會向您的客戶證明。因此，材料的品質是保證品質和數量，這就是為什麼添富機械可提供具有競爭力和優質的產品。

5. 訂單可以接受最低的多少的數量？

A:	我們只需一份訂單就可以發出，但運費將由客戶支付。

6. 客戶什麼時候收到貨物？

A:	在我們收到預付款後的30-40個工作日內會寄出5,000pcs。如果是少量訂單我們收到預付款後7-10個工作日，會寄出200pcs。

7. 留言多久會回復?

A:	因為時差，如果你想更快地與我們聯繫，請使用We Chat App ( ID: pingc052 )或阿裡巴巴的貿易經理。我們會盡快回復您。

8. 你接受網上支付嗎？

A:	是的，我們也接受PayPal的小訂單。
